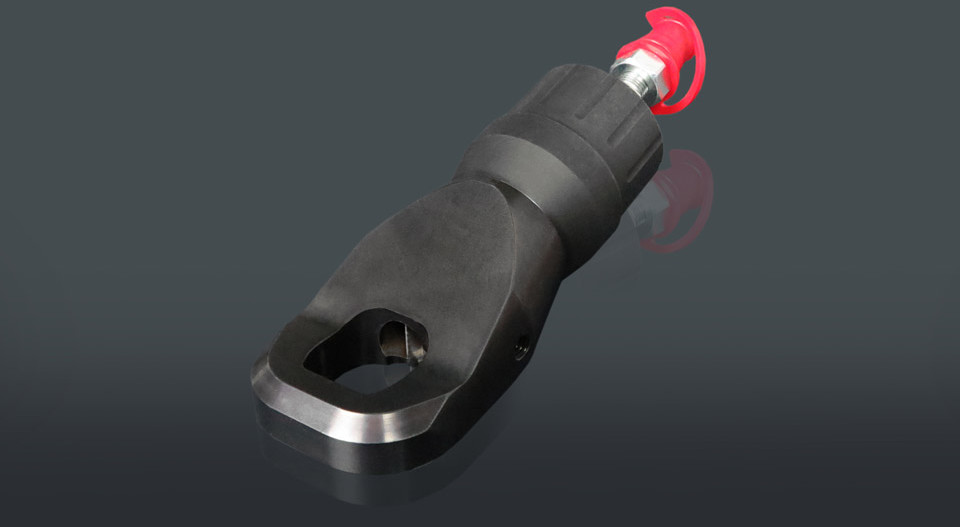

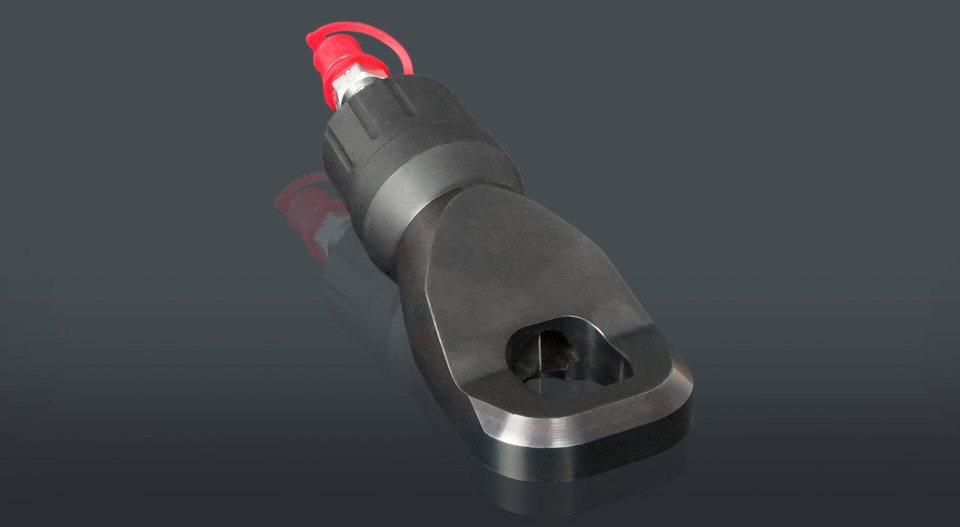

TNS螺母劈开器
发送Email ShareTNS系列
真正简单易用
切断难以松懈的螺母
- 美国原装进口
- 从1/2“到3”的八种型号
- 现场可更换切割刀片
- 真正的TorcUP设计
| 型号 | 范围（英寸） | 范围 (mm) | 重量 (磅) | 重量 (kg) |
|---|---|---|---|---|
| TNS-012 | 1/2 - 3/4 | 12 - 19 | 4.4 | 2.0 |
| TNS-100 | 13/16 - 1 | 20- 25 | 4.7 | 2.1 |
| TNS-104 | 1 1/16 - 1 1/4 | 27 - 32 | 24.9 | 11.3 |
| TNS-108 | 1 5/16 - 1 1/2 | 33 - 38 | 25.5 | 11.6 |
| TNS-112 | 1 9/16 - 1 3/4 | 39- 45 | 39.2 | 17.8 |
| TNS-200 | 1 13/16 - 2 | 46 - 50 | 42.6 | 19.3 |
| TNS-208 | 2 1/16 - 2 1/2 | 50 - 63 | 97.4 | 44.2 |
| TNS-300 | 2 9/16 - 3 | 63 - 76 | 99.5 | 45.1 |

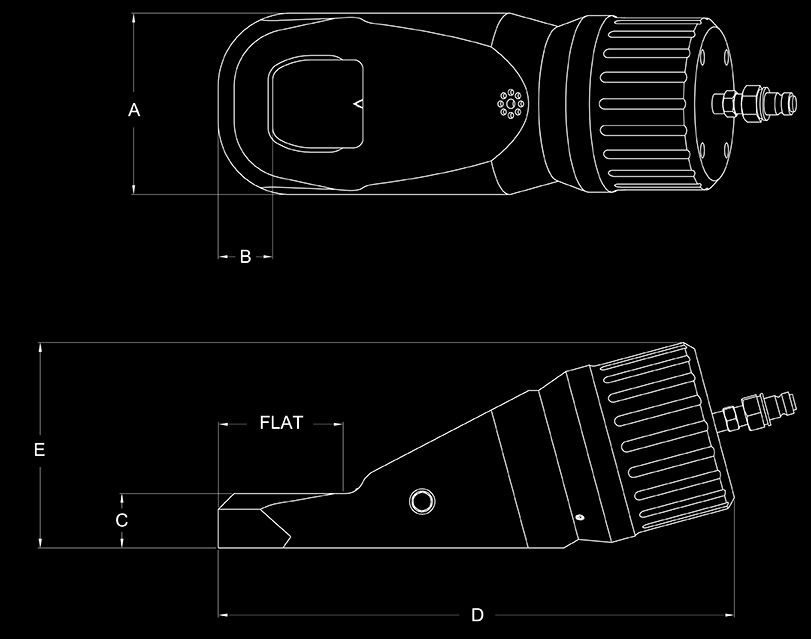

| 型号 | A | B | C | D | E | 平面 |
|---|---|---|---|---|---|---|
| TNS-012 | 2.00" / 50.8mm | 0.40" / 10.2mm | 0.63" / 15.9mm | 6.71" / 170.4mm | 2.76" / 70.1mm | 1.11" / 28.2mm |
| TNS-100 | 2.25" / 57.2mm | 0.40" / 10.2mm | 0.72" / 18.3mm | 6.94" / 176.3mm | 2.77" / 70.4mm | 1.30" / 33.0mm |
| TNS-104 | 3.75" / 95.3mm | 1.00" / 25.4mm | 1.13" / 28.6mm | 11.79" / 299.5mm | 5.07" / 128.8mm | 2.63" / 66.7mm |
| TNS-108 | 3.75" / 95.3mm | 1.13" / 28.7mm | 1.13" / 28.7mm | 12.19" / 309.6mm | 5.08" / 129.0mm | 2.53" / 64.3mm |
| TNS-112 | 4.50" / 114.3mm | 1.38" / 34.9mm | 1.25" / 31.8mm | 13.95" / 354.3mm | 5.71" / 145.0mm | 3.23" / 82.0mm |
| TNS-200 | 5.00" / 127.0mm | 1.50" / 38.1mm | 1.50" / 38.1mm | 14.23" / 361.4mm | 5.68" / 144.3mm | 3.52" / 89.4mm |
| TNS-208 | 6.25" / 158.8mm | 1.50" / 38.1mm | 2.00" / 50.8mm | 18.19" / 462.0mm | 7.75" / 196.9mm | 3.63" / 92.2mm |
| TNS-300 | 3.50" / 165.1mm | 1.53" / 38.8mm | 2.50" / 63.5mm | 18.57" / 471.7mm | 7.70" / 195.6mm | 4.50" / 114.3mm |
